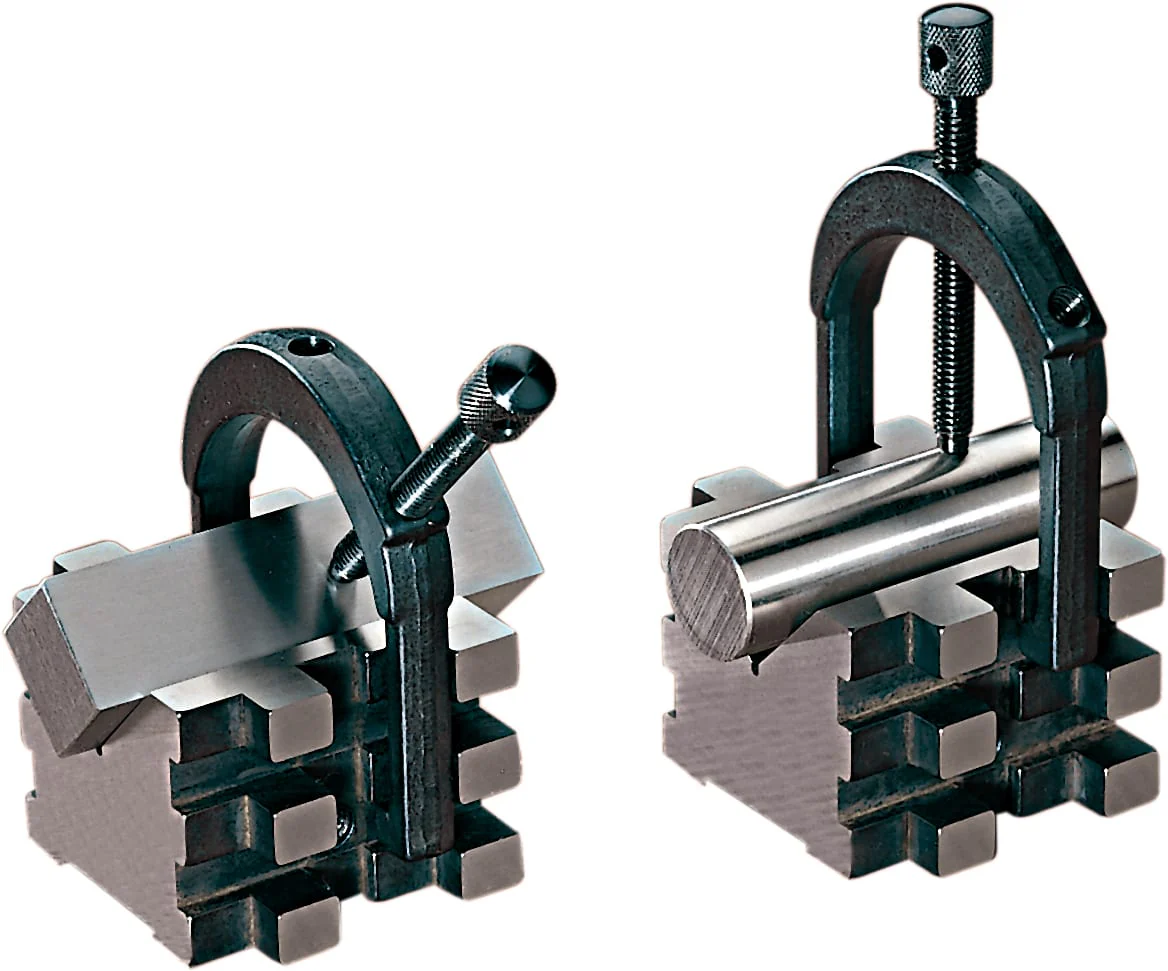

Starrett V-Blocks and Clamps 568C (Pair)
For general shop use and layout work, as well as for holding stock in place during light-duty milling, drilling, and grinding operations. All clamp screws have a hole to help secure the workpiece. Includes 2 x V-Blocks and Clamps (Matched Pair).
Hardened steel, precision ground parallel and square
V-grooves are ground central and parallel to the sides and base - perfect alignment in matched pairs
Clamps have screw holes at 45 Deg and 90 Deg to hold either square or round work
Stepped groove construction permits high or low clamp mounting or small or large work
Clamps do not project over the width of the block, permitting it to be used on the base, ends or sides
3/8-16 tapped holes permit mounting blocks on faceplates or angle irons
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Block Size
2-1/2 x 3 x 2" (63 x 75 x 50mm)
Capacity (Round)
2" (50mm) Diameter
Capacity (Square)
1-7/16" (36mm) - 1-9/16" (40mm) with Screw at Top
Mfr No.
568C
Hardened steel, precision ground parallel and square
V-grooves are ground central and parallel to the sides and base - perfect alignment in matched pairs
Clamps have screw holes at 45 Deg and 90 Deg to hold either square or round work
Stepped groove construction permits high or low clamp mounting or small or large work
Clamps do not project over the width of the block, permitting it to be used on the base, ends or sides
3/8-16 tapped holes permit mounting blocks on faceplates or angle irons
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Block Size
2-1/2 x 3 x 2" (63 x 75 x 50mm)
Capacity (Round)
2" (50mm) Diameter
Capacity (Square)
1-7/16" (36mm) - 1-9/16" (40mm) with Screw at Top
Mfr No.
568C
