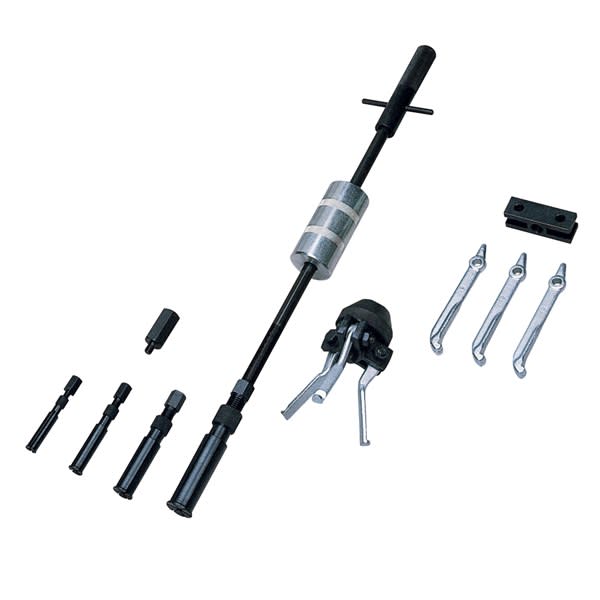

SLIDE HAMMER PULLER KIT 085403 (Pack)

COMBI PULL & SPLIT COLLET EXTRACTOR 085403
3 straight legs, 3 cranked reversible legs for internal and external pulling
4 split collet internal extractors
Adjustable cone ensures positive location, minimising risk of slippage
Supplied in carton
Leg Style: Straight & Cranked
External Spread: 66-105mm
Internal Spread Straight: 23-83mm
Internal Spread Cranked: 33-70mm
Internal Spread Split Collets: 10.5-30mm
Reach: 65 & 75mm

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
085400
Slide Hammer Puller Kit - Combi Pull (1)
095811
Split Collet Extractor 10.5-13mm (1)
095812
Split Collet Extractor 13-18mm (1)
095813
Split Collet Extractor 18-22.5mm (1)
095814
Split Collet Extractor 22.5-30mm (1)
095820
Adaptor (1)
