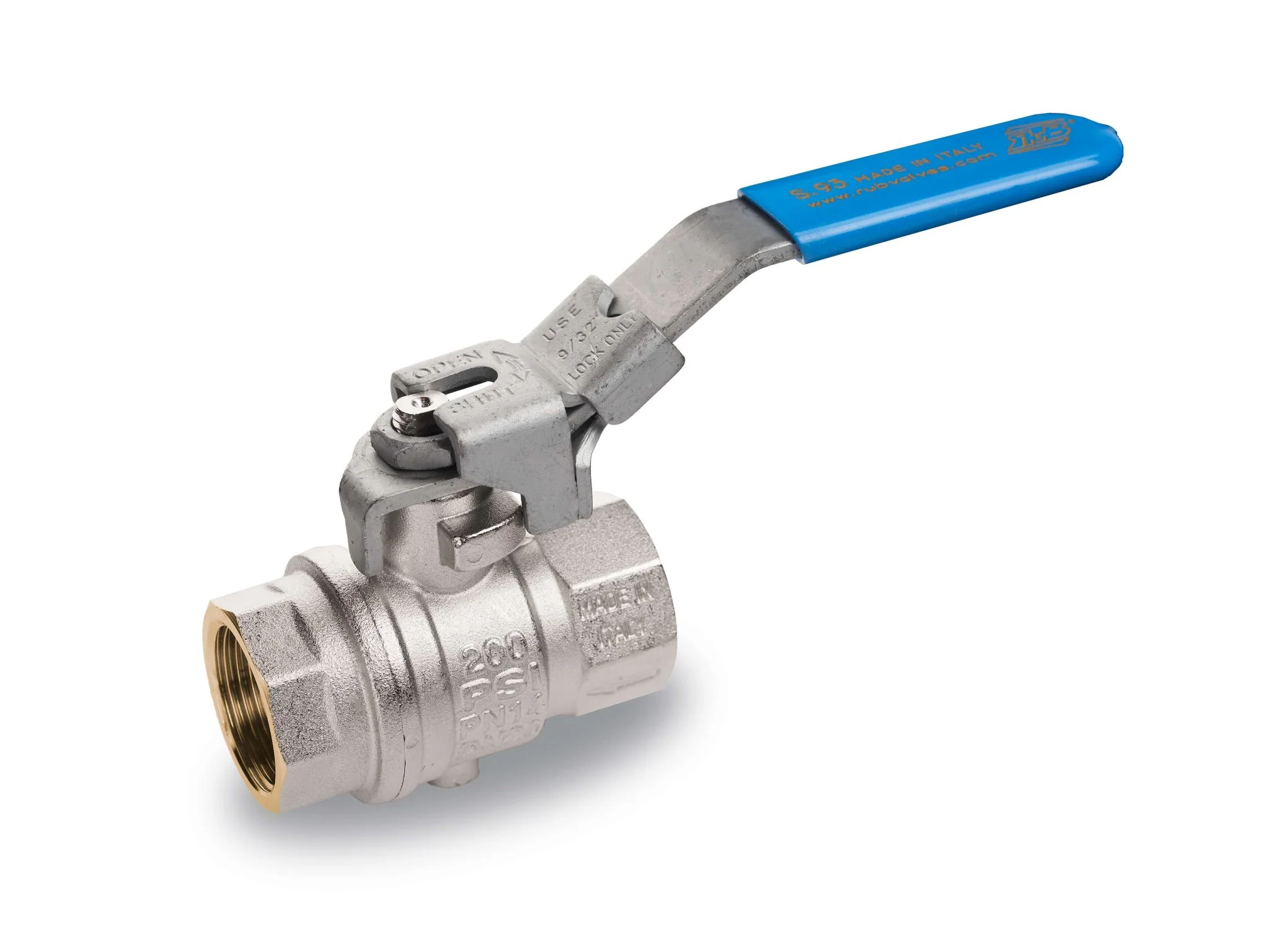

RuB s.93 Brass Ball Valve with Downstream Exhaust 20mm BSPP

RuB s.93 range exhausts automatically and continuously downstream air pressure as soon as turned in the closed position. Valve is lockable in the closed position only, allowing safe maintenance of equipment.
The valve body includes a tapped downstream depressurization venting outlet to direct exhaust air or assemble mufflers for noise control
No metal-to-metal moving parts
Handle clearly shows ball position
Geomet carbon steel lockable handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
Brass according to EN 12165 and EN 12164 specifications
Blowout-proof nickel plated brass stem
Maintenance-free, double FPM O-rings at the stem for maximum safety
Molybdenum filled PTFE self-lubricating seats with flexible-lip design
EN 10226-1, ISO 228 parallel female by female threads
Full port to DIN 3357 for maximum flow

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
S93E00
Size
20mm (3/4")
Thread
Female x Female BSPP
Handle Type
Lockable Lever
Working Pressure (non-shock cold)
14 bar (200 psi)
Temperature Range
-10C to +100C (+15F to +210F)
