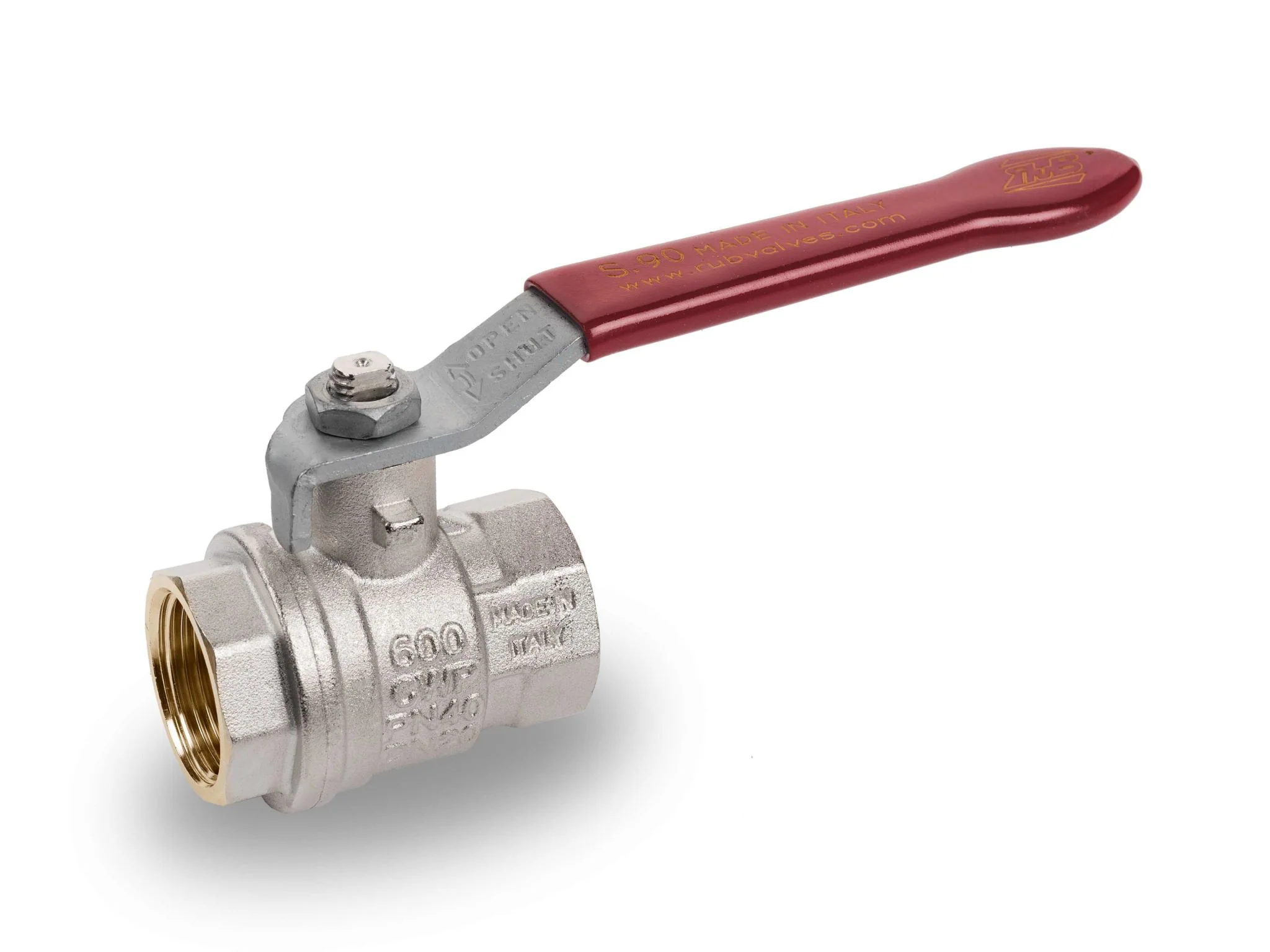

RuB s.90 Brass Ball Valve with Lever Handle 8mm BSPP

Discover the exceptional RuB s.90 Brass Ball Valve with Lever Handle, designed for seamless control of fluid flow in various industrial applications. This 8mm BSPP valve features a dual sealing system, allowing for versatility as it operates efficiently in either direction, simplifying installation. Constructed with durable brass that meets EN 12165 and EN 12164 standards, this valve ensures reliability with no metal-to-metal moving parts, reducing wear and tear over time. The clearly marked handle indicates the ball position, providing ease of operation and visual feedback. The blowout-proof nickel-plated brass stem enhances safety, while the maintenance-free design with double FPM O-rings guarantees long-lasting performance even under high pressure conditions. The pure PTFE self-lubricating seats incorporate a flexible-lip design for optimal sealing. With ISO 228 parallel female threads and a full port in accordance with DIN 3357 specifications, this brass ball valve maximizes fluid flow efficiency. The Geomet carbon steel handle features a thick PVC dip coating, delivering outstanding thermal and electrical protection. Upgrade your fluid control systems with the reliable RuB s.90 Brass Ball Valve, perfect for those requiring high pressure resistance, temperature tolerance, and minimal maintenance in their undertakings.

Ball valves are commonly used in a wide range of industrial applications for controlling the flow of fluids.
Dual sealing system allows valve to be operated in either direction making installation easier
No metal-to-metal moving parts
Handle clearly shows ball position
Brass according to EN 12165 and EN 12164 specifications
Blowout-proof nickel plated brass stem
Maintenance-free, double FPM O-rings at the stem for maximum safety
Pure PTFE self-lubricating seats with flexible-lip design
ISO 228 parallel female by female threads
Full port to DIN 3357 for maximum flow
Geomet carbon steel handle with thick PVC dip coating providing both thermal and electrical protection

TECHNICAL SPECIFICATIONS
Mfr No. S90B00
Size 8mm (1/4")
Thread Female x Female BSPP
Handle Type Lever
Working Pressure (non-shock cold) 40 bar (600 psi)
Temperature Range -40C to +170C (-40F to +350F)
