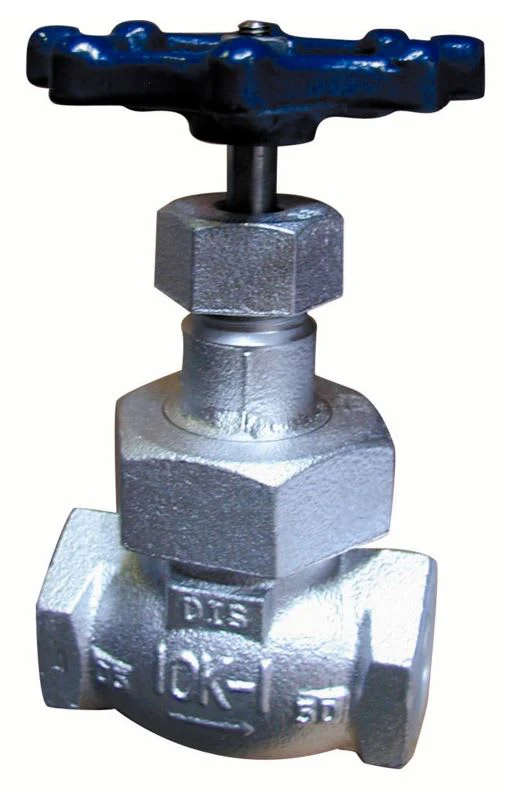

JV4-4 Hitachi Globe Valve - Malleable Iron 15mm
JV4-4 Hitachi Globe Valve - Malleable Iron 15mm
Specifications/Standards: Hitachi Model M10KSG to JIS10K specification requirements, conforms to Japan Valve Manufacturers Association Standard JV4-4
Body Materials: Malleable Cast Iron
Ends: Screwed BSP (T)
Handle: Blackheart Malleable Iron
Seat Materials: Stainless Steel
Temperature Range: 10°C to +300°C
Max. Working Pressure: 14.0Bar
TECHNICAL SPECIFICATIONS
Valve Type
JV4-4 Hitachi
Nominal Size
15mm
Non-shock CWP Bar
14
Specifications/Standards: Hitachi Model M10KSG to JIS10K specification requirements, conforms to Japan Valve Manufacturers Association Standard JV4-4
Body Materials: Malleable Cast Iron
Ends: Screwed BSP (T)
Handle: Blackheart Malleable Iron
Seat Materials: Stainless Steel
Temperature Range: 10°C to +300°C
Max. Working Pressure: 14.0Bar
TECHNICAL SPECIFICATIONS
Valve Type
JV4-4 Hitachi
Nominal Size
15mm
Non-shock CWP Bar
14
$258.22
JV4-4 Hitachi Globe Valve - Malleable Iron 15mm—
$258.22
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
JV4-4 Hitachi Globe Valve - Malleable Iron 15mm
Specifications/Standards: Hitachi Model M10KSG to JIS10K specification requirements, conforms to Japan Valve Manufacturers Association Standard JV4-4
Body Materials: Malleable Cast Iron
Ends: Screwed BSP (T)
Handle: Blackheart Malleable Iron
Seat Materials: Stainless Steel
Temperature Range: 10°C to +300°C
Max. Working Pressure: 14.0Bar
TECHNICAL SPECIFICATIONS
Valve Type
JV4-4 Hitachi
Nominal Size
15mm
Non-shock CWP Bar
14
Specifications/Standards: Hitachi Model M10KSG to JIS10K specification requirements, conforms to Japan Valve Manufacturers Association Standard JV4-4
Body Materials: Malleable Cast Iron
Ends: Screwed BSP (T)
Handle: Blackheart Malleable Iron
Seat Materials: Stainless Steel
Temperature Range: 10°C to +300°C
Max. Working Pressure: 14.0Bar
TECHNICAL SPECIFICATIONS
Valve Type
JV4-4 Hitachi
Nominal Size
15mm
Non-shock CWP Bar
14
