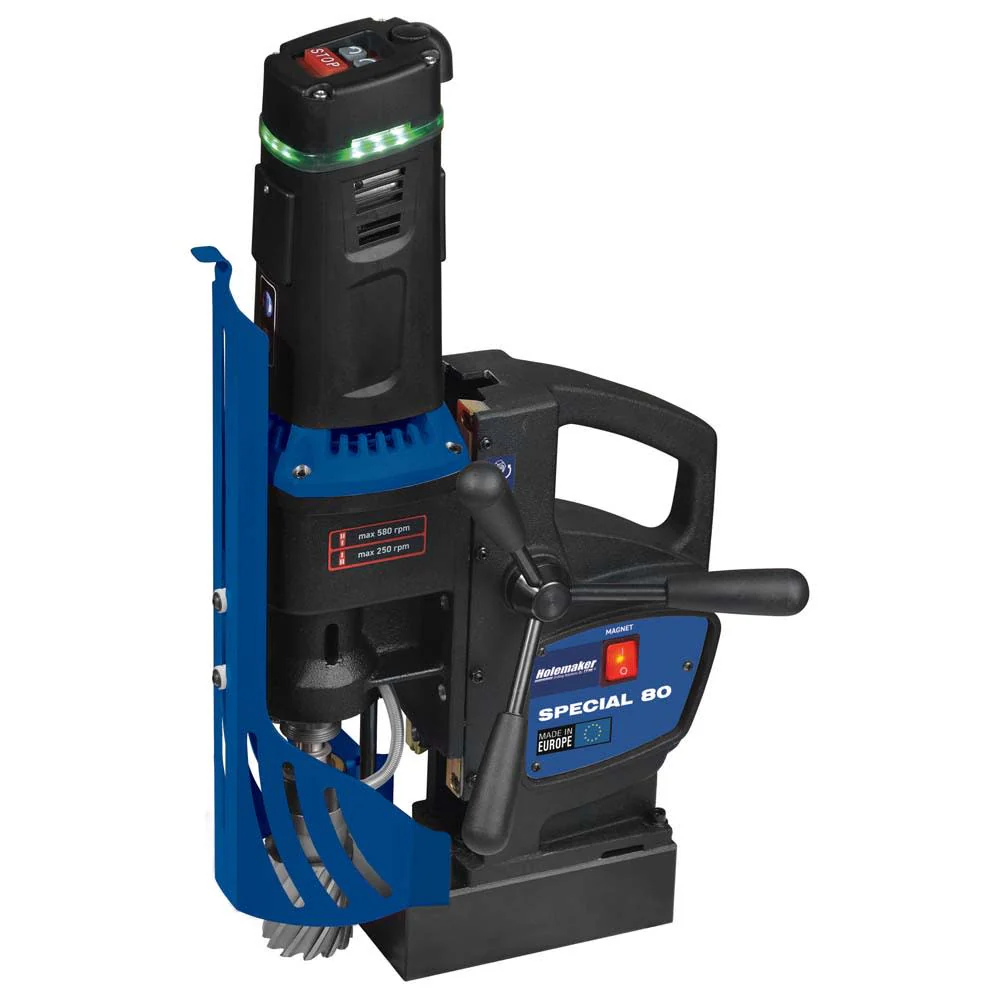

Holemaker Magnetic Base Drill HMSPECIAL80

#3 Morse Taper, Versatile Drilling & Tapping Machine. The Holemaker Special 80 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine's forward and reverse work modes with variable speed adjustment allows thread cutting up to M24 of through holes and blind holes.
Intelligent speed control system maintains stable speed regardless of load changes
Electronic Variable Speed Control
Electronic Clutch
Overload and Overheat protection
Tilt sensor stops the motor in cases of machine's break away
360 degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
Intuitive control panel at top of the drill
Very light weight at 18kg
Supplied in a durable blow mould carry case with cutter guard and safety strap
New generation Italian made motor

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Capacity (Diameter)
80mm
Capacity (Depth)
110mm
Twist Drill Capacity
25mm
Tap Capacity
M24
Motor
1500W 240V
Speed
120 - 190 / 290 - 450rpm - 2 Speed Variable Gearbox
Magnetic Dead Lift
11000Nm on 25mm steel plate
Stroke
190mm
Height
554mm min / 744mm max
Mfr No.
HMSPECIAL80
