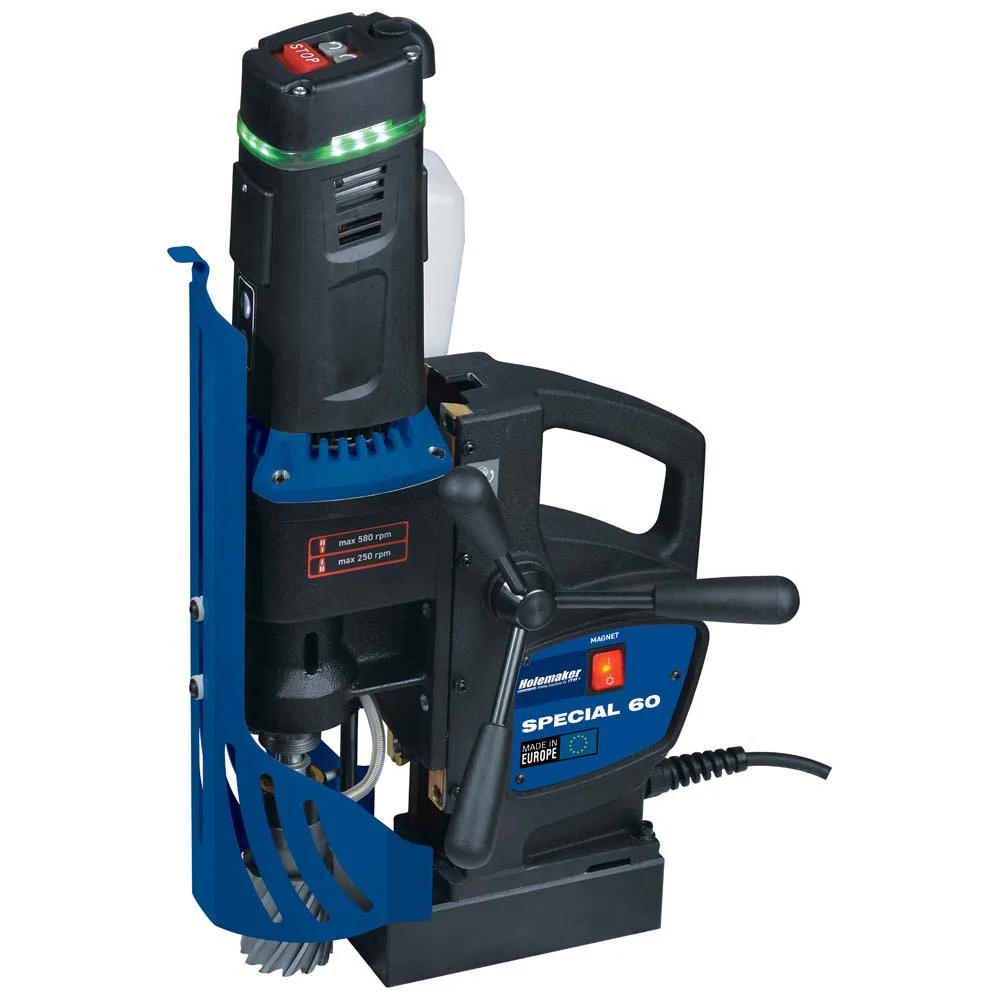

Holemaker Magnetic Base Drill HMSPECIAL60

#2 Morse Taper Spindle Universal Tapping & Drilling Machine. The Holemaker Special 60 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine's forward and reverse work modes with variable speed adjustment allows thread cutting up to M20 of through holes and blind holes.
Intelligent speed control system maintains stable speed regardless of load changes
Electronic Variable Speed Control
Electronic clutch
Overload and Overheat protection
Tilt sensor stops the motor in cases of machine's break away
360 degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
Intuitive control panel at top of the drill
Very light weight at 17kg
Supplied in a durable blow mould carry case with cutter guard and safety strap
New generation Italian made motor

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Capacity (Diameter)
60mm
Capacity (Depth)
75mm
Twist drill capacity
23mm
Tap Capacity
M20
Stroke
190mm
Motor
1500W 240V
Speed
160-250 / 390-580rpm - 2 Speed Variable Gearbox
Height
502mm min / 692mm max
Magnetic Dead Lift
11000Nm on 25mm steel plate
Mfr No.
HMSPECIAL60
