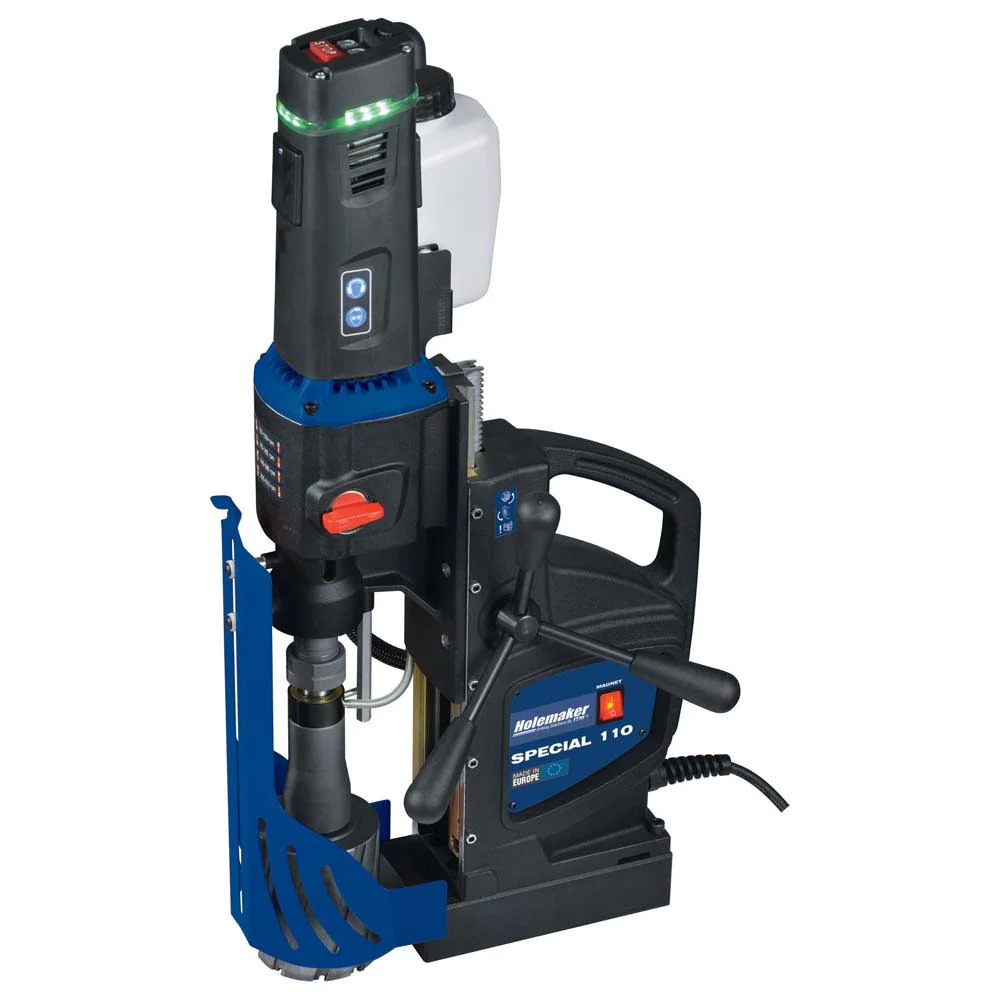

Holemaker Magnetic Base Drill HMSPECIAL110

#3 Morse Taper, Versatile Drilling & Tapping Machine. The Holemaker Special 110 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine's forward and reverse work modes with variable speed adjustment allows thread cutting up to M30 of through holes and blind holes.
Intelligent speed control system maintains stable speed regardless of load changes
Electronic Variable Speed Control
Electronic Clutch
Overload and Overheat protection
Tilt sensor stops the motor in cases of machine's break away
360 degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
Intuitive control panel at the top of the drill
Very light weight at 25kg
Supplied in a metal carry case with cutter guard and safety strap
New generation Italian made motor

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Capacity (Diameter)
110mm
Capacity (Depth)
110mm
Twist Drill Capacity
32mm
Tap Capacity
M30
Motor
2150W 240V
Speed
75-110 / 135-200 / 220-320 / 390-570rpm - 4 Speed Variable Gearbox
Magnetic Dead Lift
18000Nm on 25mm steel plate
Stroke
225mm
Height
637mm min / 862mm max
Mfr No.
HMSPECIAL110
