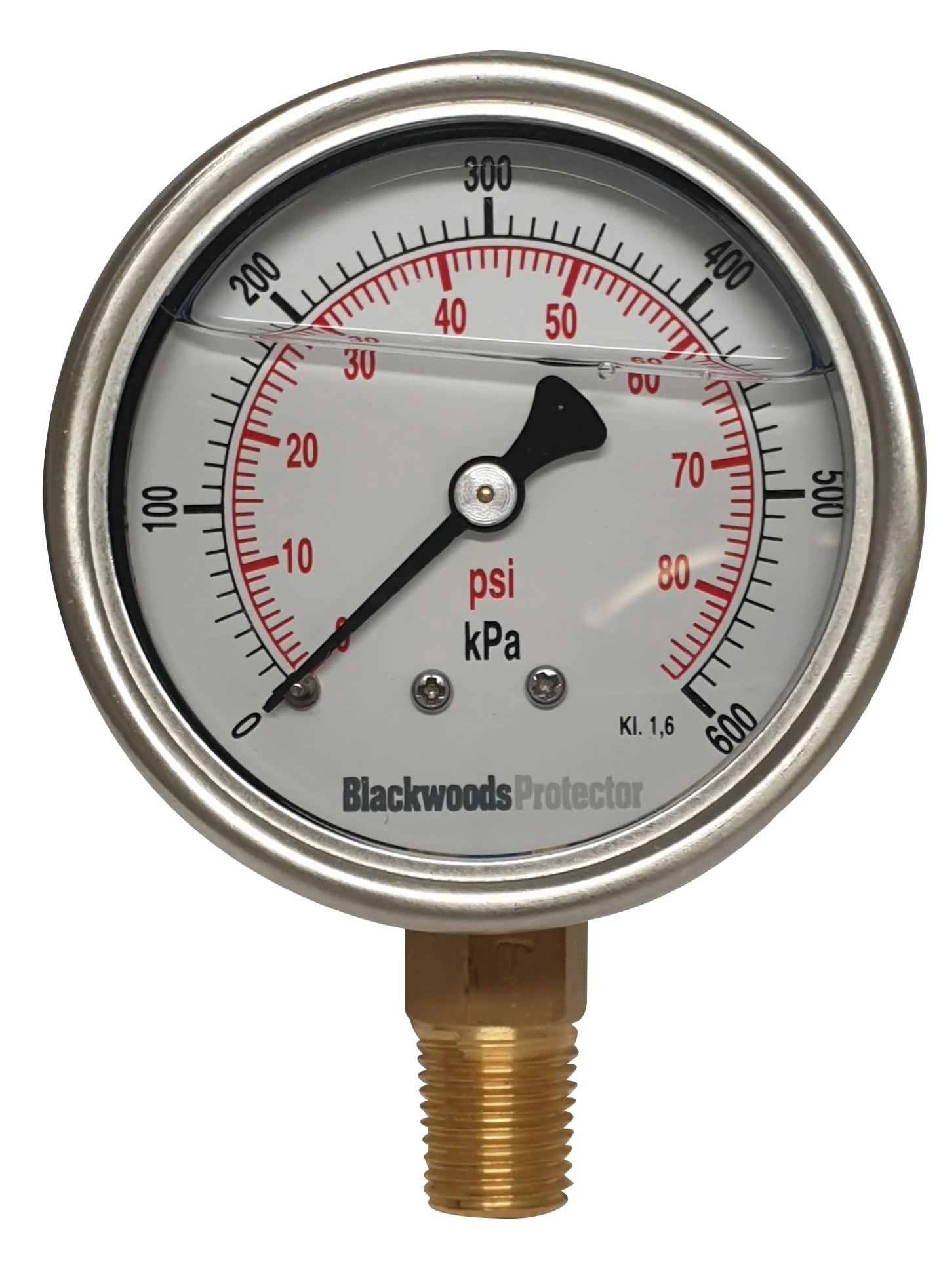

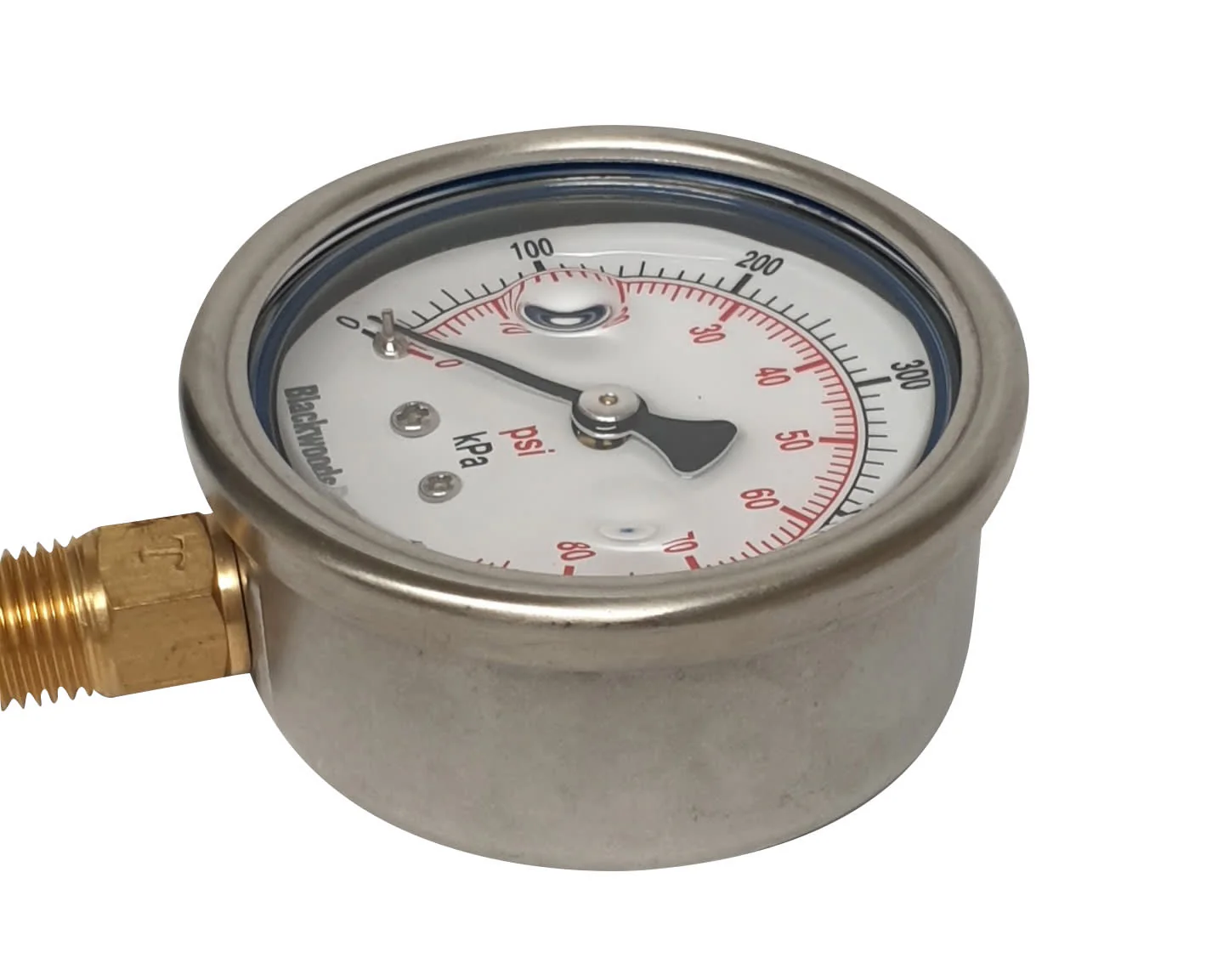

Gauges Pressure SS- 1/4" BSP-Bottom 0/600kPa 63mm

63mm stainless steel case pressure gauges are robust industrial quality enclosed within a stainless steel grade 304 case and bezel. Plexi glass window and neoprene seal. Designed for heavy duty service where vibration or pulsation of medium would cause excessive wear on a dry gauge or where corrosive ambient conditions prevail.
Copper alloy bourdon and socket.
Accuracy +/- 1.6%
Ambient temperature: -25 C to 65 C
Specific application examples are hydraulic plant, mining and irrigation equipment.

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Brand/ Model
Gauges Pressure
Pressure Min & Max
0 & 600
Scale Type
kPa- Dual
Glycerine
Unfilled
Stem Mount Entry
Bottom
Connection
1/4" BSP
