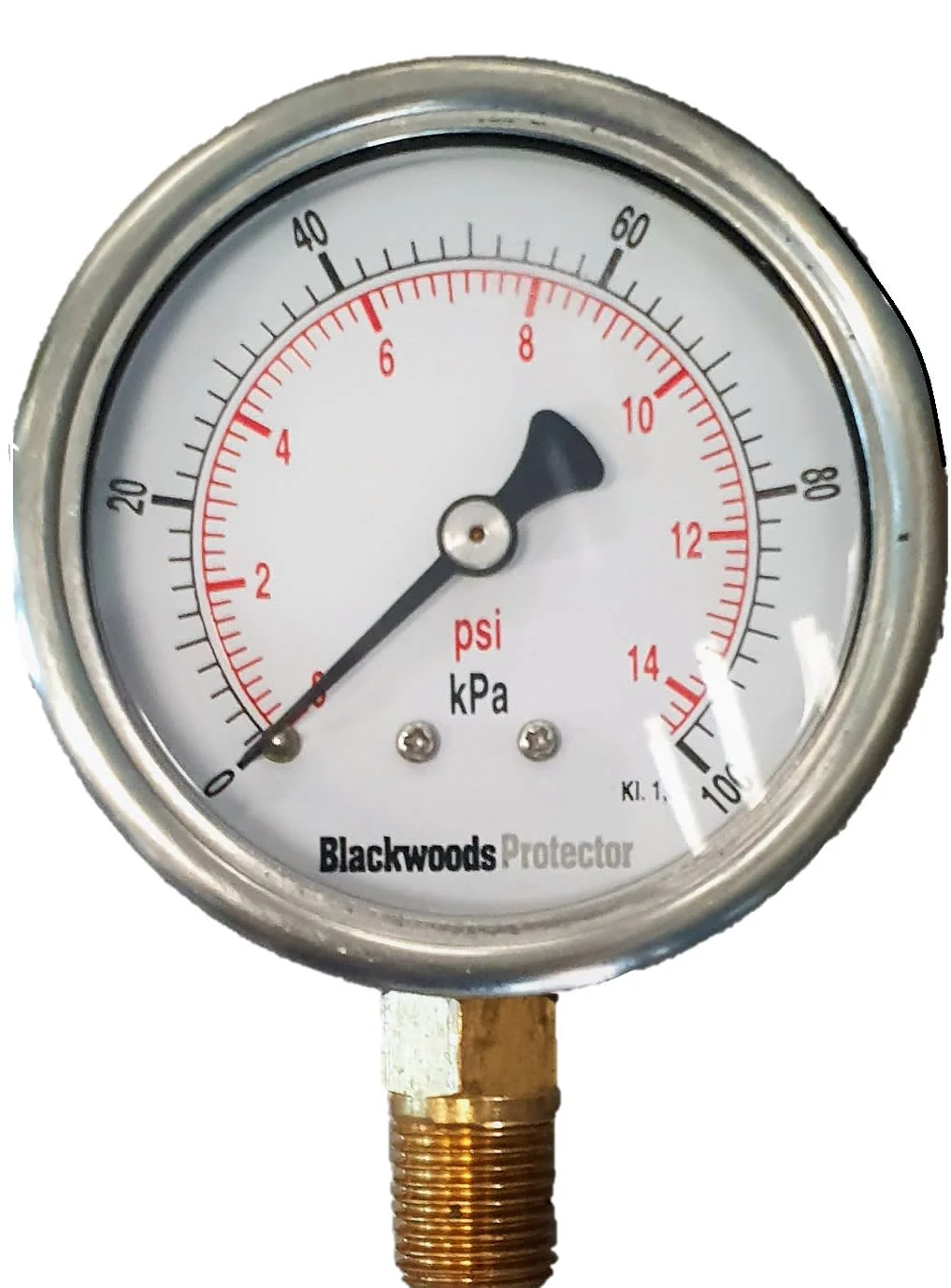

Gauges Pressure SS- 1/4" BSP-Bottom 0/100 kPa

63mm stainless steel case pressure gauges are robust industrial quality enclosed within a stainless steel grade 304 case and bezel. Plexi glass window and neoprene seal. Designed for heavy duty service where vibration or pulsation of medium would cause excessive wear on a dry gauge or where corrosive ambient conditions prevail.
Copper alloy bourdon and socket.
Specific application examples are hydraulic plant, mining and irrigation equipment.
Accuracy 1.6%
Ambient Temperature: -25 C to +65 C

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Brand/ Model
Gauges Pressure
Pressure Min & Max
0 & 100
Scale Type
kPa- Dual
Glycerine
Unfilled
Case Dia(mm)
63
Stem Mount Entry
Bottom
Connections
1/4" BSP
