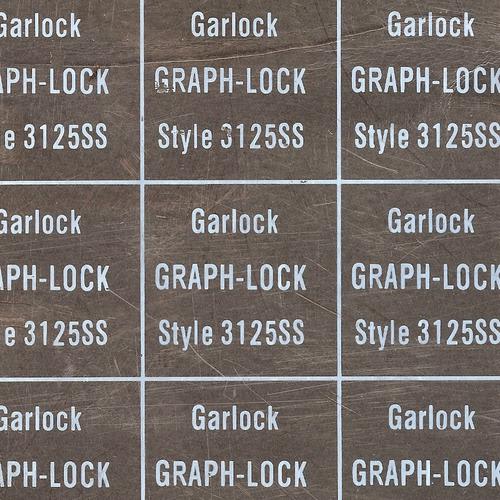

Garlock Foil Gasket Sheet 3125SS 1500X1500 1.5mm 1.5mm
Garlock Foil Gasket Sheet 3125SS 1500X1500 1.5mm 1.5mm
Laminated layers of 0.381mm (0.015") purified natural graphite flake that have been acid washed, expanded under heat, and then compressed into sheets with a minimum graphite content of 98%. This sheet contains a 0.051mm (0.002 ) thick 316 stainless steel foil insert, bonded with a proprietary adhesive. This adhesive comprises less than 1% of the total laminated weight.
Mild acids, mild caustics & alkalis, hydrocarbons, oxidizers, gases (except fluorine), aldehydes, ketones, ethers, some chlorides, phenols, amines, solvents, oils, fuels, alcohols, lubricants, halogen
Handles extreme temperatures including superheated steam. ABS approved.
Fire Safe: API 607
TECHNICAL SPECIFICATIONS
Brand
Graphlock-312SS
Mfr Part No
31255-7025
Temp Min
-240 OC (-400 OF)
Temp (Max)
+454 OC (+850 OF)
Temp Max Cont. (steam)
+650 OC (+1200 OF)
Pressure (Max)
141 bar (2000 psi)
Laminated layers of 0.381mm (0.015") purified natural graphite flake that have been acid washed, expanded under heat, and then compressed into sheets with a minimum graphite content of 98%. This sheet contains a 0.051mm (0.002 ) thick 316 stainless steel foil insert, bonded with a proprietary adhesive. This adhesive comprises less than 1% of the total laminated weight.
Mild acids, mild caustics & alkalis, hydrocarbons, oxidizers, gases (except fluorine), aldehydes, ketones, ethers, some chlorides, phenols, amines, solvents, oils, fuels, alcohols, lubricants, halogen
Handles extreme temperatures including superheated steam. ABS approved.
Fire Safe: API 607
TECHNICAL SPECIFICATIONS
Brand
Graphlock-312SS
Mfr Part No
31255-7025
Temp Min
-240 OC (-400 OF)
Temp (Max)
+454 OC (+850 OF)
Temp Max Cont. (steam)
+650 OC (+1200 OF)
Pressure (Max)
141 bar (2000 psi)
$1,512.01
Garlock Foil Gasket Sheet 3125SS 1500X1500 1.5mm 1.5mmā
$1,512.01
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Garlock Foil Gasket Sheet 3125SS 1500X1500 1.5mm 1.5mm
Laminated layers of 0.381mm (0.015") purified natural graphite flake that have been acid washed, expanded under heat, and then compressed into sheets with a minimum graphite content of 98%. This sheet contains a 0.051mm (0.002 ) thick 316 stainless steel foil insert, bonded with a proprietary adhesive. This adhesive comprises less than 1% of the total laminated weight.
Mild acids, mild caustics & alkalis, hydrocarbons, oxidizers, gases (except fluorine), aldehydes, ketones, ethers, some chlorides, phenols, amines, solvents, oils, fuels, alcohols, lubricants, halogen
Handles extreme temperatures including superheated steam. ABS approved.
Fire Safe: API 607
TECHNICAL SPECIFICATIONS
Brand
Graphlock-312SS
Mfr Part No
31255-7025
Temp Min
-240 OC (-400 OF)
Temp (Max)
+454 OC (+850 OF)
Temp Max Cont. (steam)
+650 OC (+1200 OF)
Pressure (Max)
141 bar (2000 psi)
Laminated layers of 0.381mm (0.015") purified natural graphite flake that have been acid washed, expanded under heat, and then compressed into sheets with a minimum graphite content of 98%. This sheet contains a 0.051mm (0.002 ) thick 316 stainless steel foil insert, bonded with a proprietary adhesive. This adhesive comprises less than 1% of the total laminated weight.
Mild acids, mild caustics & alkalis, hydrocarbons, oxidizers, gases (except fluorine), aldehydes, ketones, ethers, some chlorides, phenols, amines, solvents, oils, fuels, alcohols, lubricants, halogen
Handles extreme temperatures including superheated steam. ABS approved.
Fire Safe: API 607
TECHNICAL SPECIFICATIONS
Brand
Graphlock-312SS
Mfr Part No
31255-7025
Temp Min
-240 OC (-400 OF)
Temp (Max)
+454 OC (+850 OF)
Temp Max Cont. (steam)
+650 OC (+1200 OF)
Pressure (Max)
141 bar (2000 psi)
