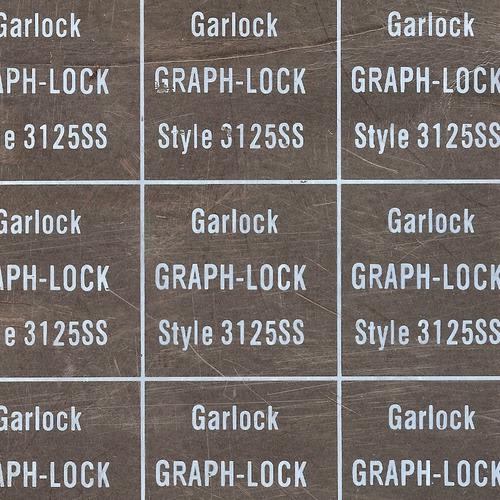

Garlock Foil Gasket Sheet 3125SS 1500X1500 0.8mm 0.8mm
Garlock Foil Gasket Sheet 3125SS 1500X1500 0.8mm 0.8mm
Laminated layers of 0.381mm (0.015") purified natural graphite flake that have been acid washed, expanded under heat, and then compressed into sheets with a minimum graphite content of 98%. This sheet contains a 0.051mm (0.002 ) thick 316 stainless steel foil insert, bonded with a proprietary adhesive. This adhesive comprises less than 1% of the total laminated weight.
Mild acids, mild caustics & alkalis, hydrocarbons, oxidizers, gases (except fluorine), aldehydes, ketones, ethers, some chlorides, phenols, amines, solvents, oils, fuels, alcohols, lubricants, halogen
Handles extreme temperatures including superheated steam. ABS approved.
Fire Safe: API 607
TECHNICAL SPECIFICATIONS
Brand
Graphlock-312SS
Mfr Part No
31255-7026
Temp Min
-240 OC (-400 OF)
Temp Max
+454 OC (+850 OF)
Temp Max Cont.(Steam)
+650 OC (+1200 OF)
Pressure (Max)
142 bar (2000 psi)
Laminated layers of 0.381mm (0.015") purified natural graphite flake that have been acid washed, expanded under heat, and then compressed into sheets with a minimum graphite content of 98%. This sheet contains a 0.051mm (0.002 ) thick 316 stainless steel foil insert, bonded with a proprietary adhesive. This adhesive comprises less than 1% of the total laminated weight.
Mild acids, mild caustics & alkalis, hydrocarbons, oxidizers, gases (except fluorine), aldehydes, ketones, ethers, some chlorides, phenols, amines, solvents, oils, fuels, alcohols, lubricants, halogen
Handles extreme temperatures including superheated steam. ABS approved.
Fire Safe: API 607
TECHNICAL SPECIFICATIONS
Brand
Graphlock-312SS
Mfr Part No
31255-7026
Temp Min
-240 OC (-400 OF)
Temp Max
+454 OC (+850 OF)
Temp Max Cont.(Steam)
+650 OC (+1200 OF)
Pressure (Max)
142 bar (2000 psi)
