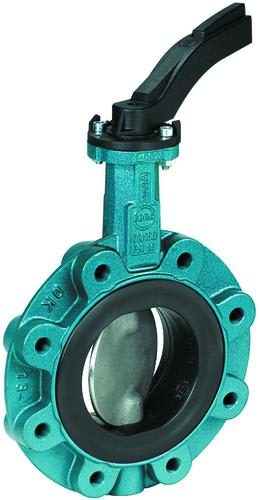

Butterfly Valve -Lug Z014A 316 EPE Ebro-150mm

Lug type butterfly valve with threaded holes. Absolutely tight sealing with flow in either direction. The valve body and disc are accurately machined which results in low operating torque and long service life and reliability. Triple shaft bearings prevents shaft deflection and guarantees optimum guidance even after many years of operating service.
Can be disassembled, material specific recycling possible
Single flange mounting is possible
Can be installed in any desired position
Maintenance free and fully repairable
Full epoxy resin coated inside and outside

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Model
Z014-A- Butterfly Valve
Operator
Lever
Face/face mm
56
Rating Bar
16
Suit Flanges:
AS 2129 E
Nominal Size
150mm
